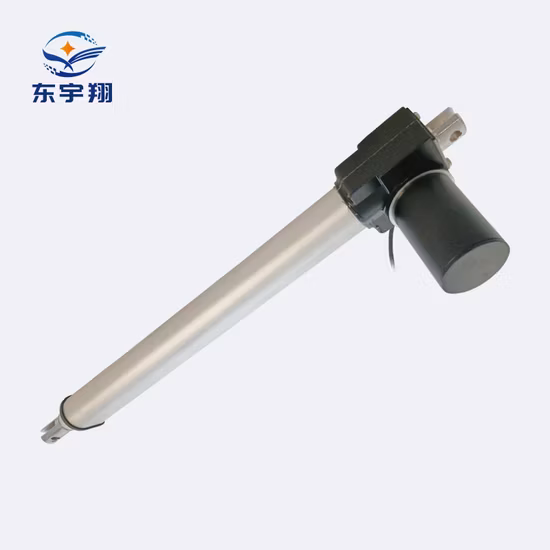

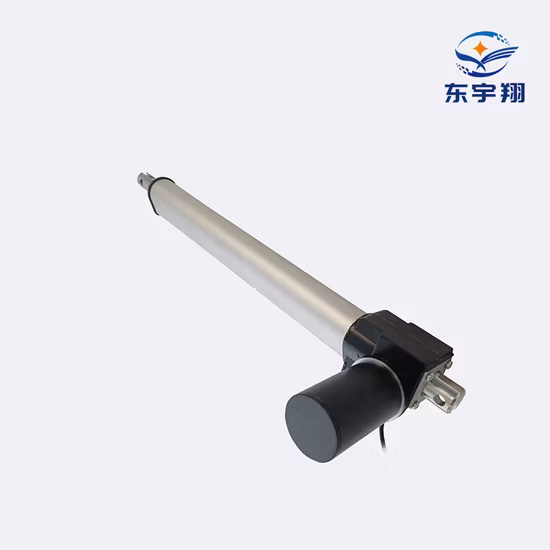

Heavy Duty Linear Actuator for Hospital Bed Medical Bed Nursing Bed Homecare Bed

Basic Info

Model NO.	FY013
Speed	4mm/S (8000n)
Stroke	Custom
Color	Black or Gray
Transport Package	Carton and Pallet
Specification	3.9kg
Trademark	JDR
Origin	Jiangsu Wuxi
HS Code	8501200000
Production Capacity	500000 Pieces/Year

Product Description

Product Details

Specification

Model	FY013
Input Voltage	24V/12V
Load Capacity	8000N
Speed (free load)	4mm/s (8000N)
Protection Class	IP54
Duty of Cycle	10%
Operation Temperature	-15ºC - 45ºC
Stroke	Custom
Limit Switch	Built
Noise Level	<50dB
Material (inner tube)	Stainless Steel

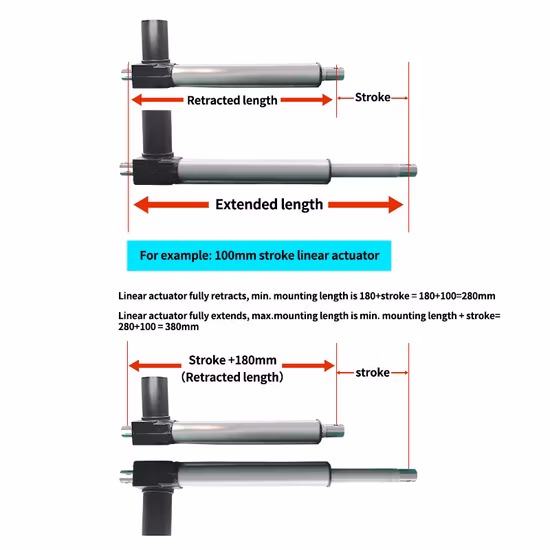

Installation Size

Application

Our Advantages

Certifications

Exhibitions and ClientsCompany Introduction



Founded in 2000, Wuxi JDR Automation Equipment is a professional manufacturing and trading company integrating the research, production and marketing of DC linear actuator. Wuxi Feiya Linear Motion Equipment is a a branch company. Our company owns several automatic production lines and enough experience in the production and research of linear actuators and controllers. Our products are popularized in many occasions when need to be implemented with rectilinear motion such as electrical nursing beds, operational beds, traction beds, massage chairs, dental chairs, electrical sofas, adjustable desks and show-cases. These products can adjust heights, move forward and backward, as well as angle change, which take the place of gas springs as well as AC decelerators. Dreams drive science, technology creates life. Based on domestic market and aiming at overseas market, JDR (Feiya) has gradually started to establish perfect marketing net both at home and abroad. "Quality First, Customer Paramount" is our established guidelines. "Based on honesty, providing high quality products and innovative service, striving after perfection" is our management concept. Now , we have successful foreign trading experience in South Europe , West Europe , North Europe , North America , South America , Middle East, Southeast Asia and Oceania . We, JDR and Feiya, sincerely welcome your advice , suggestions and inquiries and hope we can become your long-term cooperation partner as linear actuator supplier.

FAQs:
Q1:Are the motors DC or AC type?A1:All of our motors are DC motors.Q2: Does the actuators have signal feedback?A2: Hall sensors or potentiometer can be built in if you need. Hall sensors are able to guarantee synchronizing movement of actuators.
Q3: Are your linear actuators CE certified?A3: Yes, our products are CE, ROHS, SAA, FCC certified. You can trust the quality of our products.Q4: How do you guarantee that your products are qualified?A4: Each actuator will be inspected thoroughly in our inpection room and we will test the tensile force, stroke, speed, hole diameter and direction of the pull rod and installation distance. If it has abnormal sound during the test, we will rework.Q5: Can your linear actuators be connected to PLC?A5: Yes, it can be linked to PLC directly, but you will need to do the setup.Q6: What can I do to prolong the service life?A6: We will recommend the ideal duty cycle which is working 2 min, stop for 18 min.
